OVN-Kubernetes architecture

The following sections describe the OVN-Kubernetes architecture, how OVN components map to cluster resources and databases, and how to install and run network-tools for debugging.

Introduction to OVN-Kubernetes architecture​

The OVN-Kubernetes architecture comprises specialized databases and daemons that process network state requests. Use this mapping to evaluate data paths and troubleshoot multi-node communication routing.

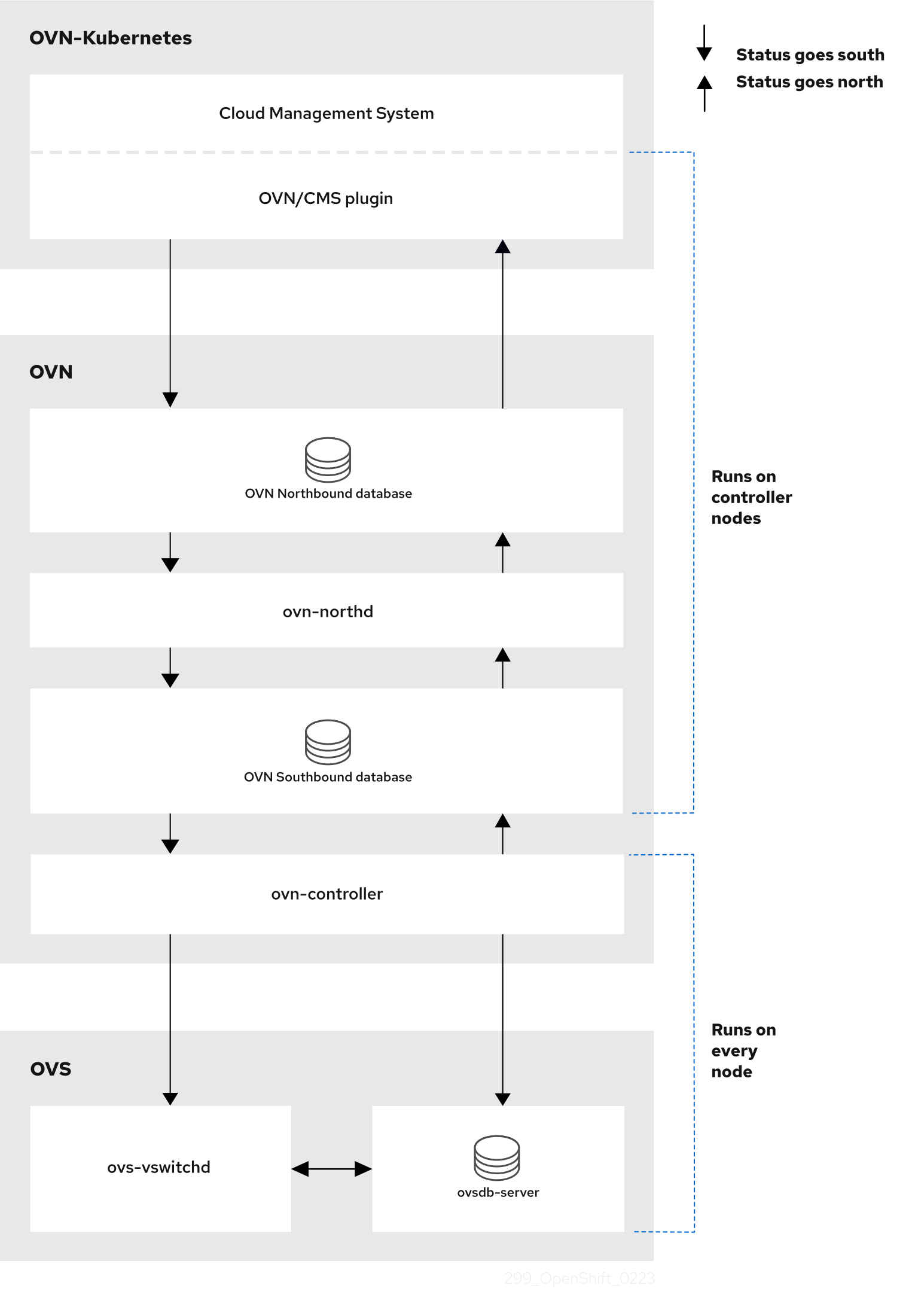

Figure 1. OVN-Kubernetes architecture

OVN-Kubernetes architecture

The key components are:

  • Cloud Management System (CMS) - A platform specific client for OVN that provides a CMS specific plugin for OVN integration. The plugin translates the cloud management system’s concept of the logical network configuration, stored in the CMS configuration database in a CMS-specific format, into an intermediate representation understood by OVN.
  • OVN Northbound database (nbdb) container - Stores the logical network configuration passed by the CMS plugin.
  • OVN Southbound database (sbdb) container - Stores the physical and logical network configuration state for Open vSwitch (OVS) system on each node, including tables that bind them.
  • OVN north daemon (ovn-northd) - This is the intermediary client between nbdb container and sbdb container. It translates the logical network configuration in terms of conventional network concepts, taken from the nbdb container, into logical data path flows in the sbdb container. The container name for ovn-northd daemon is northd and it runs in the ovnkube-node pods.
  • ovn-controller - This is the OVN agent that interacts with OVS and hypervisors, for any information or update that is required for sbdb container. The ovn-controller reads logical flows from the sbdb container, translates them into OpenFlow flows and sends them to the node’s OVS daemon. The container name is ovn-controller and it runs in the ovnkube-node pods.

The OVN northd, northbound database, and southbound database run on each node in the cluster and mostly contain and process information that is local to that node.

The OVN northbound database has the logical network configuration passed down to it by the cloud management system (CMS). The OVN northbound database contains the current intended state of the network, presented as a collection of logical ports, logical switches, logical routers, and more. The ovn-northd (northd container) connects to the OVN northbound database and the OVN southbound database. It translates the logical network configuration in terms of conventional network concepts, taken from the OVN northbound database, into logical data path flows in the OVN southbound database.

The OVN southbound database has physical and logical representations of the network and binding tables that link them together. It contains the chassis information of the node and other constructs such as remote transit switch ports that are required to connect to the other nodes in the cluster. The OVN southbound database also contains all the logic flows. The logic flows are shared with the ovn-controller process that runs on each node and the ovn-controller turns those into OpenFlow rules to program Open vSwitch(OVS).

The Kubernetes control plane nodes contain two ovnkube-control-plane pods on separate nodes, which perform the central IP address management (IPAM) allocation for each node in the cluster. At any given time, a single ovnkube-control-plane pod is the leader.

Listing all resources in the OVN-Kubernetes project​

List the resources and containers running within the OVN-Kubernetes project to identify network workload states and verify component placement across the infrastructure.

Procedure

  1. List all pods and endpoints by entering the following command:

    $ oc get all,ep,cm -n openshift-ovn-kubernetes
    Example output
    Warning: apps.openshift.io/v1 DeploymentConfig is deprecated in v4.14+, unavailable in v4.10000+
    NAME                                         READY   STATUS    RESTARTS       AGE
    pod/ovnkube-control-plane-65c6f55656-6d55h   2/2     Running   0              114m
    pod/ovnkube-control-plane-65c6f55656-fd7vw   2/2     Running   2 (104m ago)   114m
    pod/ovnkube-node-bcvts                       8/8     Running   0              113m
    pod/ovnkube-node-drgvv                       8/8     Running   0              113m
    pod/ovnkube-node-f2pxt                       8/8     Running   0              113m
    pod/ovnkube-node-frqsb                       8/8     Running   0              105m
    pod/ovnkube-node-lbxkk                       8/8     Running   0              105m
    pod/ovnkube-node-tt7bx                       8/8     Running   1 (102m ago)   105m

    NAME                                   TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)             AGE
    service/ovn-kubernetes-control-plane   ClusterIP   None         <none>        9108/TCP            114m
    service/ovn-kubernetes-node            ClusterIP   None         <none>        9103/TCP,9105/TCP   114m

    NAME                          DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR                 AGE
    daemonset.apps/ovnkube-node   6         6         6       6            6           beta.kubernetes.io/os=linux   114m

    NAME                                    READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/ovnkube-control-plane   3/3     3            3           114m

    NAME                                               DESIRED   CURRENT   READY   AGE
    replicaset.apps/ovnkube-control-plane-65c6f55656   3         3         3       114m

    NAME                                     ENDPOINTS                                               AGE
    endpoints/ovn-kubernetes-control-plane   10.0.0.3:9108,10.0.0.4:9108,10.0.0.5:9108               114m
    endpoints/ovn-kubernetes-node            10.0.0.3:9105,10.0.0.4:9105,10.0.0.5:9105 + 9 more...   114m

    NAME                                 DATA   AGE
    configmap/control-plane-status       1      113m
    configmap/kube-root-ca.crt           1      114m
    configmap/openshift-service-ca.crt   1      114m
    configmap/ovn-ca                     1      114m
    configmap/ovnkube-config             1      114m
    configmap/signer-ca                  1      114m

    There is one ovnkube-node pod for each node in the cluster. The ovnkube-config config map has the OpenShift Container Platform OVN-Kubernetes configurations.

  2. Display the container layout within the node pod by entering the following command:

    $ oc get pods ovnkube-node-bcvts -o jsonpath='{.spec.containers[*].name}' -n openshift-ovn-kubernetes
    Example output
    ovn-controller ovn-acl-logging kube-rbac-proxy-node kube-rbac-proxy-ovn-metrics northd nbdb sbdb ovnkube-controller

    The ovnkube-node pod hosts the following networking containers:

    • The northbound database, nbdb.
    • The southbound database, sbdb.
    • The north daemon, northd.
    • The ovn-controller.
    • The ovnkube-controller. The ovnkube-controller container watches for API objects such as pods, egress IPs, namespaces, services, endpoints, egress firewall, and network policies. The controller is also responsible for allocating pod IP addresses from the available subnet pool for that node.

  3. List all the containers in the ovnkube-control-plane pods by entering the following command:

    $ oc get pods ovnkube-control-plane-65c6f55656-6d55h -o jsonpath='{.spec.containers[*].name}' -n openshift-ovn-kubernetes
    Example output
    kube-rbac-proxy ovnkube-cluster-manager

    The ovnkube-control-plane pod has a container that runs on each OpenShift Container Platform node, the ovnkube-cluster-manager. The ovnkube-cluster-manager container allocates pod subnet, transit-switch subnet IP addresses, and join-switch subnet IP addresses to each node in the cluster. The kube-rbac-proxy container monitors metrics for the ovnkube-cluster-manager container.

Listing the OVN-Kubernetes northbound database contents​

To understand OVN-Kubernetes (OVN-K) logical networking entities, you must examine the northbound database running as a container inside the ovnkube-node pod. Each node is controlled by the ovnkube-controller container running within that local pod structure.

Prerequisites

  • Access to the cluster as a user with the cluster-admin role.
  • The OpenShift CLI (oc) is installed.

Procedure

  1. List the pods in the network namespace by entering the following command:

    $ oc get po -n openshift-ovn-kubernetes
    Example output
    NAME                                     READY   STATUS    RESTARTS      AGE
    ovnkube-control-plane-8444dff7f9-4lh9k   2/2     Running   0             27m
    ovnkube-control-plane-8444dff7f9-5rjh9   2/2     Running   0             27m
    ovnkube-node-55xs2                       8/8     Running   0             26m
    ovnkube-node-7r84r                       8/8     Running   0             16m
    ovnkube-node-bqq8p                       8/8     Running   0             17m
    ovnkube-node-mkj4f                       8/8     Running   0             26m
    ovnkube-node-mlr8k                       8/8     Running   0             26m
    ovnkube-node-wqn2m                       8/8     Running   0             16m

  2. Optional: To list the pods with node information, enter the following command:

    $ oc get pods -n openshift-ovn-kubernetes -owide
    Example output
    NAME                                     READY   STATUS    RESTARTS      AGE   IP           NODE                                       NOMINATED NODE   READINESS GATES
    ovnkube-control-plane-8444dff7f9-4lh9k   2/2     Running   0             27m   10.0.0.3     ci-ln-t487nnb-72292-mdcnq-master-1         <none>           <none>
    ovnkube-control-plane-8444dff7f9-5rjh9   2/2     Running   0             27m   10.0.0.4     ci-ln-t487nnb-72292-mdcnq-master-2         <none>           <none>
    ovnkube-node-55xs2                       8/8     Running   0             26m   10.0.0.4     ci-ln-t487nnb-72292-mdcnq-master-2         <none>           <none>
    ovnkube-node-7r84r                       8/8     Running   0             17m   10.0.128.3   ci-ln-t487nnb-72292-mdcnq-worker-b-wbz7z   <none>           <none>
    ovnkube-node-bqq8p                       8/8     Running   0             17m   10.0.128.2   ci-ln-t487nnb-72292-mdcnq-worker-a-lh7ms   <none>           <none>
    ovnkube-node-mkj4f                       8/8     Running   0             27m   10.0.0.5     ci-ln-t487nnb-72292-mdcnq-master-0         <none>           <none>
    ovnkube-node-mlr8k                       8/8     Running   0             27m   10.0.0.3     ci-ln-t487nnb-72292-mdcnq-master-1         <none>           <none>
    ovnkube-node-wqn2m                       8/8     Running   0             17m   10.0.128.4   ci-ln-t487nnb-72292-mdcnq-worker-c-przlm   <none>           <none>

  3. Open a remote shell into the nbdb or sbdb containers on the relevant node.

  4. Show all the objects in the northbound database by entering the following command:

    $ ovn-nbctl show

    The output is too long to list here. The list includes the NAT rules, logical switches, load balancers and so on.

    You can narrow down and focus on specific components by using some of the following optional commands:

    1. View the list of active logical routers by entering the following command:

      $ oc exec -n openshift-ovn-kubernetes -it ovnkube-node-55xs2 \
      -c northd -- ovn-nbctl lr-list
      Example output
      45339f4f-7d0b-41d0-b5f9-9fca9ce40ce6 (GR_ci-ln-t487nnb-72292-mdcnq-master-2)
      96a0a0f0-e7ed-4fec-8393-3195563de1b8 (ovn_cluster_router)
      note

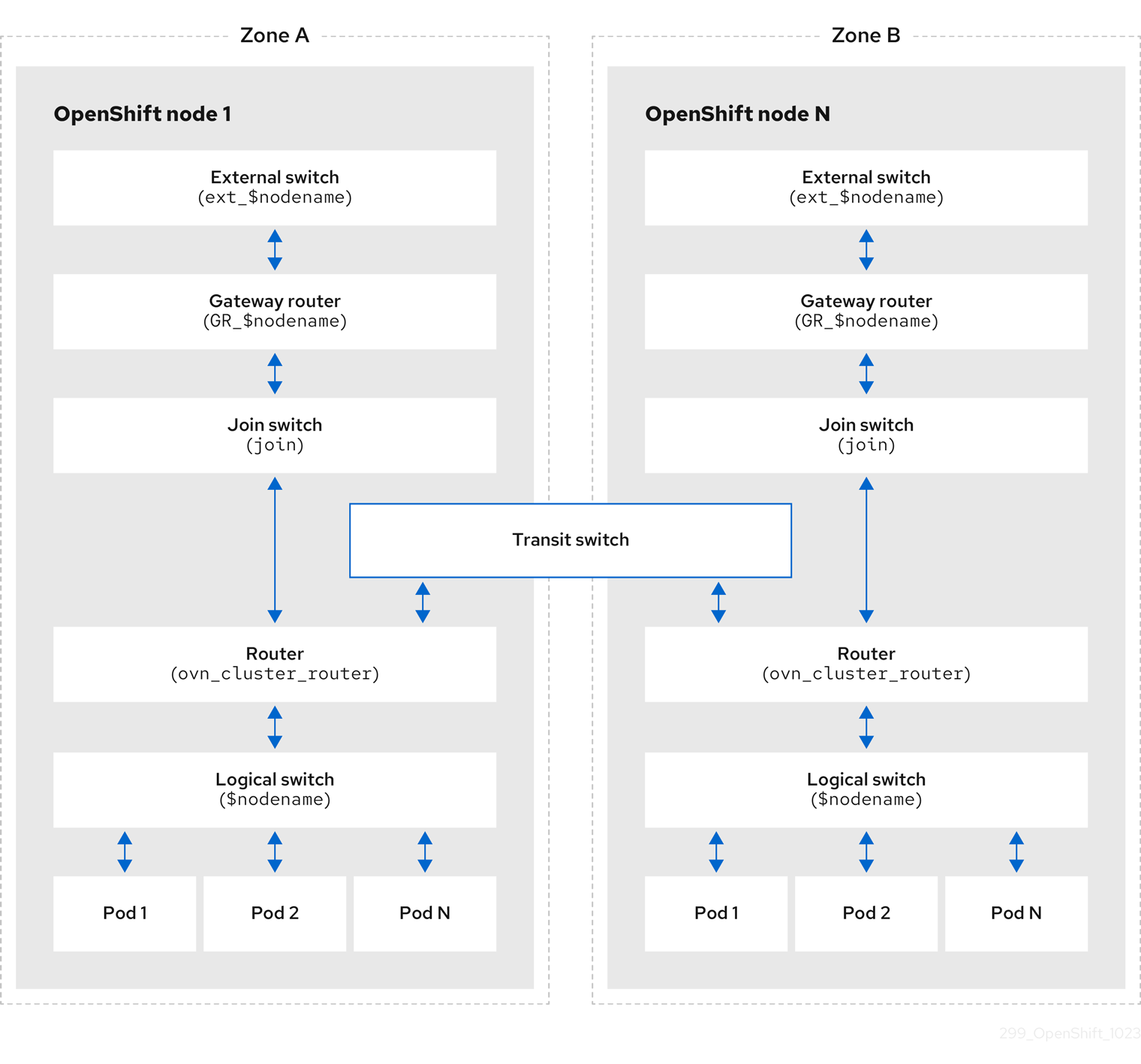

      From this output you can see there is router on each node plus an ovn_cluster_router.

    2. View the list of logical switches by entering the following command:

      $ oc exec -n openshift-ovn-kubernetes -it ovnkube-node-55xs2 \
      -c nbdb -- ovn-nbctl ls-list
      Example output
      bdd7dc3d-d848-4a74-b293-cc15128ea614 (ci-ln-t487nnb-72292-mdcnq-master-2)
      b349292d-ee03-4914-935f-1940b6cb91e5 (ext_ci-ln-t487nnb-72292-mdcnq-master-2)
      0aac0754-ea32-4e33-b086-35eeabf0a140 (join)
      992509d7-2c3f-4432-88db-c179e43592e5 (transit_switch)
      note

      From this output you can see there is an ext switch for each node plus switches with the node name itself and a join switch.

    3. View the list of load balancers by entering the following command:

      $ oc exec -n openshift-ovn-kubernetes -it ovnkube-node-55xs2 \
      -c nbdb -- ovn-nbctl lb-list
      Example output
      UUID                                    LB                  PROTO      VIP                     IPs
      7c84c673-ed2a-4436-9a1f-9bc5dd181eea    Service_default/    tcp        172.30.0.1:443          10.0.0.3:6443,169.254.169.2:6443,10.0.0.5:6443
      4d663fd9-ddc8-4271-b333-4c0e279e20bb    Service_default/    tcp        172.30.0.1:443          10.0.0.3:6443,10.0.0.4:6443,10.0.0.5:6443
      292eb07f-b82f-4962-868a-4f541d250bca    Service_openshif    tcp        172.30.105.247:443      10.129.0.12:8443
      034b5a7f-bb6a-45e9-8e6d-573a82dc5ee3    Service_openshif    tcp        172.30.192.38:443       10.0.0.3:10259,10.0.0.4:10259,10.0.0.5:10259
      a68bb53e-be84-48df-bd38-bdd82fcd4026    Service_openshif    tcp        172.30.161.125:8443     10.129.0.32:8443
      6cc21b3d-2c54-4c94-8ff5-d8e017269c2e    Service_openshif    tcp        172.30.3.144:443        10.129.0.22:8443
      37996ffd-7268-4862-a27f-61cd62e09c32    Service_openshif    tcp        172.30.181.107:443      10.129.0.18:8443
      81d4da3c-f811-411f-ae0c-bc6713d0861d    Service_openshif    tcp        172.30.228.23:443       10.129.0.29:8443
      ac5a4f3b-b6ba-4ceb-82d0-d84f2c41306e    Service_openshif    tcp        172.30.14.240:9443      10.129.0.36:9443
      c88979fb-1ef5-414b-90ac-43b579351ac9    Service_openshif    tcp        172.30.231.192:9001     10.128.0.5:9001,10.128.2.5:9001,10.129.0.5:9001,10.129.2.4:9001,10.130.0.3:9001,10.131.0.3:9001
      fcb0a3fb-4a77-4230-a84a-be45dce757e8    Service_openshif    tcp        172.30.189.92:443       10.130.0.17:8440
      67ef3e7b-ceb9-4bf0-8d96-b43bde4c9151    Service_openshif    tcp        172.30.67.218:443       10.129.0.9:8443
      d0032fba-7d5e-424a-af25-4ab9b5d46e81    Service_openshif    tcp        172.30.102.137:2379     10.0.0.3:2379,10.0.0.4:2379,10.0.0.5:2379
                                                                  tcp        172.30.102.137:9979     10.0.0.3:9979,10.0.0.4:9979,10.0.0.5:9979
      7361c537-3eec-4e6c-bc0c-0522d182abd4    Service_openshif    tcp        172.30.198.215:9001     10.0.0.3:9001,10.0.0.4:9001,10.0.0.5:9001,10.0.128.2:9001,10.0.128.3:9001,10.0.128.4:9001
      0296c437-1259-410b-a6fd-81c310ad0af5    Service_openshif    tcp        172.30.198.215:9001     10.0.0.3:9001,169.254.169.2:9001,10.0.0.5:9001,10.0.128.2:9001,10.0.128.3:9001,10.0.128.4:9001
      5d5679f5-45b8-479d-9f7c-08b123c688b8    Service_openshif    tcp        172.30.38.253:17698     10.128.0.52:17698,10.129.0.84:17698,10.130.0.60:17698
      2adcbab4-d1c9-447d-9573-b5dc9f2efbfa    Service_openshif    tcp        172.30.148.52:443       10.0.0.4:9202,10.0.0.5:9202
                                                                  tcp        172.30.148.52:444       10.0.0.4:9203,10.0.0.5:9203
                                                                  tcp        172.30.148.52:445       10.0.0.4:9204,10.0.0.5:9204
                                                                  tcp        172.30.148.52:446       10.0.0.4:9205,10.0.0.5:9205
      2a33a6d7-af1b-4892-87cc-326a380b809b    Service_openshif    tcp        172.30.67.219:9091      10.129.2.16:9091,10.131.0.16:9091
                                                                  tcp        172.30.67.219:9092      10.129.2.16:9092,10.131.0.16:9092
                                                                  tcp        172.30.67.219:9093      10.129.2.16:9093,10.131.0.16:9093
                                                                  tcp        172.30.67.219:9094      10.129.2.16:9094,10.131.0.16:9094
      f56f59d7-231a-4974-99b3-792e2741ec8d    Service_openshif    tcp        172.30.89.212:443       10.128.0.41:8443,10.129.0.68:8443,10.130.0.44:8443
      08c2c6d7-d217-4b96-b5d8-c80c4e258116    Service_openshif    tcp        172.30.102.137:2379     10.0.0.3:2379,169.254.169.2:2379,10.0.0.5:2379
                                                                  tcp        172.30.102.137:9979     10.0.0.3:9979,169.254.169.2:9979,10.0.0.5:9979
      60a69c56-fc6a-4de6-bd88-3f2af5ba5665    Service_openshif    tcp        172.30.10.193:443       10.129.0.25:8443
      ab1ef694-0826-4671-a22c-565fc2d282ec    Service_openshif    tcp        172.30.196.123:443      10.128.0.33:8443,10.129.0.64:8443,10.130.0.37:8443
      b1fb34d3-0944-4770-9ee3-2683e7a630e2    Service_openshif    tcp        172.30.158.93:8443      10.129.0.13:8443
      95811c11-56e2-4877-be1e-c78ccb3a82a9    Service_openshif    tcp        172.30.46.85:9001       10.130.0.16:9001
      4baba1d1-b873-4535-884c-3f6fc07a50fd    Service_openshif    tcp        172.30.28.87:443        10.129.0.26:8443
      6c2e1c90-f0ca-484e-8a8e-40e71442110a    Service_openshif    udp        172.30.0.10:53          10.128.0.13:5353,10.128.2.6:5353,10.129.0.39:5353,10.129.2.6:5353,10.130.0.11:5353,10.131.0.9:5353
      note

      From this truncated output you can see there are many OVN-Kubernetes load balancers. Load balancers in OVN-Kubernetes are representations of services.

  5. Display the options available with the ovn-nbctl command by entering the following command:

    $ oc exec -n openshift-ovn-kubernetes -it ovnkube-node-55xs2 \
    -c nbdb ovn-nbctl --help

Command-line arguments for ovn-nbctl to examine northbound database contents​

The following table describes the command-line arguments that can be used with ovn-nbctl to examine the contents of the northbound database.

note

Open a remote shell in the pod you want to view the contents of and then run the ovn-nbctl commands.

Command-line arguments to examine northbound database contents

ArgumentDescription
ovn-nbctl showAn overview of the northbound database contents as seen from a specific node.
ovn-nbctl show <switch_or_router>Show the details associated with the specified switch or router.
ovn-nbctl lr-listShow the logical routers.
ovn-nbctl lrp-list <router>Using the router information from ovn-nbctl lr-list to show the router ports.
ovn-nbctl lr-nat-list <router>Show network address translation details for the specified router.
ovn-nbctl ls-listShow the logical switches
ovn-nbctl lsp-list <switch>Using the switch information from ovn-nbctl ls-list to show the switch port.
ovn-nbctl lsp-get-type <port>Get the type for the logical port.
ovn-nbctl lb-listShow the load balancers.

Listing the OVN-Kubernetes southbound database contents​

To understand OVN-Kubernetes (OVN-K) logical networking entities, examine the southbound database running as a container inside the ovnkube-node pod. Each node is controlled by the ovnkube-controller container running in that pod on the node.

Prerequisites

  • Access to the cluster as a user with the cluster-admin role.
  • The OpenShift CLI (oc) is installed.

Procedure

  1. List the pods in the network namespace by entering the following command:

    $ oc get po -n openshift-ovn-kubernetes
    Example output
    NAME                                     READY   STATUS    RESTARTS      AGE
    ovnkube-control-plane-8444dff7f9-4lh9k   2/2     Running   0             27m
    ovnkube-control-plane-8444dff7f9-5rjh9   2/2     Running   0             27m
    ovnkube-node-55xs2                       8/8     Running   0             26m
    ovnkube-node-7r84r                       8/8     Running   0             16m
    ovnkube-node-bqq8p                       8/8     Running   0             17m
    ovnkube-node-mkj4f                       8/8     Running   0             26m
    ovnkube-node-mlr8k                       8/8     Running   0             26m
    ovnkube-node-wqn2m                       8/8     Running   0             16m

  2. Optional: To list the pods with node information, enter the following command:

    $ oc get pods -n openshift-ovn-kubernetes -owide
    Example output
    NAME                                     READY   STATUS    RESTARTS      AGE   IP           NODE                                       NOMINATED NODE   READINESS GATES
    ovnkube-control-plane-8444dff7f9-4lh9k   2/2     Running   0             27m   10.0.0.3     ci-ln-t487nnb-72292-mdcnq-master-1         <none>           <none>
    ovnkube-control-plane-8444dff7f9-5rjh9   2/2     Running   0             27m   10.0.0.4     ci-ln-t487nnb-72292-mdcnq-master-2         <none>           <none>
    ovnkube-node-55xs2                       8/8     Running   0             26m   10.0.0.4     ci-ln-t487nnb-72292-mdcnq-master-2         <none>           <none>
    ovnkube-node-7r84r                       8/8     Running   0             17m   10.0.128.3   ci-ln-t487nnb-72292-mdcnq-worker-b-wbz7z   <none>           <none>
    ovnkube-node-bqq8p                       8/8     Running   0             17m   10.0.128.2   ci-ln-t487nnb-72292-mdcnq-worker-a-lh7ms   <none>           <none>
    ovnkube-node-mkj4f                       8/8     Running   0             27m   10.0.0.5     ci-ln-t487nnb-72292-mdcnq-master-0         <none>           <none>
    ovnkube-node-mlr8k                       8/8     Running   0             27m   10.0.0.3     ci-ln-t487nnb-72292-mdcnq-master-1         <none>           <none>
    ovnkube-node-wqn2m                       8/8     Running   0             17m   10.0.128.4   ci-ln-t487nnb-72292-mdcnq-worker-c-przlm   <none>           <none>

  3. Open a remote shell into the nbdb or sbdb containers on the relevant node to examine the southbound database.

  4. Show all the objects in the southbound database by entering the following command:

    $ ovn-sbctl show
    Example output
    Chassis "5db31703-35e9-413b-8cdf-69e7eecb41f7"
        hostname: ci-ln-9gp362t-72292-v2p94-worker-a-8bmwz
        Encap geneve
            ip: "10.0.128.4"
            options: {csum="true"}
        Port_Binding tstor-ci-ln-9gp362t-72292-v2p94-worker-a-8bmwz
    Chassis "070debed-99b7-4bce-b17d-17e720b7f8bc"
        hostname: ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Encap geneve
            ip: "10.0.128.2"
            options: {csum="true"}
        Port_Binding k8s-ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding rtoe-GR_ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding openshift-monitoring_alertmanager-main-1
        Port_Binding rtoj-GR_ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding etor-GR_ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding cr-rtos-ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding openshift-e2e-loki_loki-promtail-qcrcz
        Port_Binding jtor-GR_ci-ln-9gp362t-72292-v2p94-worker-b-svmp6
        Port_Binding openshift-multus_network-metrics-daemon-mkd4t
        Port_Binding openshift-ingress-canary_ingress-canary-xtvj4
        Port_Binding openshift-ingress_router-default-6c76cbc498-pvlqk
        Port_Binding openshift-dns_dns-default-zz582
        Port_Binding openshift-monitoring_thanos-querier-57585899f5-lbf4f
        Port_Binding openshift-network-diagnostics_network-check-target-tn228
        Port_Binding openshift-monitoring_prometheus-k8s-0
        Port_Binding openshift-image-registry_image-registry-68899bd877-xqxjj
    Chassis "179ba069-0af1-401c-b044-e5ba90f60fea"
        hostname: ci-ln-9gp362t-72292-v2p94-master-0
        Encap geneve
            ip: "10.0.0.5"
            options: {csum="true"}
        Port_Binding tstor-ci-ln-9gp362t-72292-v2p94-master-0
    Chassis "68c954f2-5a76-47be-9e84-1cb13bd9dab9"
        hostname: ci-ln-9gp362t-72292-v2p94-worker-c-mjf9w
        Encap geneve
            ip: "10.0.128.3"
            options: {csum="true"}
        Port_Binding tstor-ci-ln-9gp362t-72292-v2p94-worker-c-mjf9w
    Chassis "2de65d9e-9abf-4b6e-a51d-a1e038b4d8af"
        hostname: ci-ln-9gp362t-72292-v2p94-master-2
        Encap geneve
            ip: "10.0.0.4"
            options: {csum="true"}
        Port_Binding tstor-ci-ln-9gp362t-72292-v2p94-master-2
    Chassis "1d371cb8-5e21-44fd-9025-c4b162cc4247"
        hostname: ci-ln-9gp362t-72292-v2p94-master-1
        Encap geneve
            ip: "10.0.0.3"
            options: {csum="true"}
        Port_Binding tstor-ci-ln-9gp362t-72292-v2p94-master-1
    • This detailed output shows the chassis and the ports that are attached to the chassis which in this case are all of the router ports and anything that uses host networking.
    • Any pods communicate out to the wider network by using source network address translation (SNAT). Their IP address is translated into the IP address of the node that the pod is running on and then sent out into the network.
    • In addition to the chassis information the southbound database has all the logic flows and those logic flows are then sent to the ovn-controller running on each of the nodes. The ovn-controller translates the logic flows into open flow rules and ultimately programs OpenvSwitch so that your pods can then follow open flow rules and make it out of the network.

  5. Display the options available with the ovn-sbctl command by entering the following command:

    $ oc exec -n openshift-ovn-kubernetes -it ovnkube-node-55xs2 \
    -c sbdb ovn-sbctl --help

Command-line arguments for ovn-sbctl to examine southbound database contents​

The following table describes the command-line arguments that can be used with ovn-sbctl to examine the contents of the southbound database.

note

Open a remote shell in the pod you wish to view the contents of and then run the ovn-sbctl commands.

Command-line arguments to examine southbound database contents

ArgumentDescription
ovn-sbctl showAn overview of the southbound database contents as seen from a specific node.
ovn-sbctl list Port_Binding <port>List the contents of southbound database for a the specified port .
ovn-sbctl dump-flowsList the logical flows.

OVN-Kubernetes logical architecture​

OVN-Kubernetes is a network virtualization solution that creates logical switches and routers across cluster nodes. These virtual infrastructure components interconnect to construct distinct network topologies.

Figure 2. OVN-Kubernetes router and switch components

OVN-Kubernetes logical architecture

The key components involved in packet processing are:

Gateway routers
Gateway routers sometimes called L3 gateway routers, are typically used between the distributed routers and the physical network. Gateway routers including their logical patch ports are bound to a physical location (not distributed), or chassis. The patch ports on this router are known as l3gateway ports in the ovn-southbound database (ovn-sbdb).
Distributed logical routers
Distributed logical routers and the logical switches behind them, to which virtual machines and containers attach, effectively reside on each hypervisor.
Join local switch
Join local switches are used to connect the distributed router and gateway routers. It reduces the number of IP addresses needed on the distributed router.
Logical switches with patch ports
Logical switches with patch ports virtualize the network stack. These components connect remote logical ports through network encapsulation tunnels.
Logical switches with localnet ports
Logical switches with localnet ports connect the OVN layout to the physical network. These elements connect remote logical ports by bridging packets to directly attached physical Layer 2 segments.
Patch ports
Patch ports provide connectivity between logical switches and logical routers, or between peer logical routers. A single connection uses a pair of patch ports at each connectivity intersection, one on each side.
l3gateway ports
Port binding entries in the ovn-sbdb for logical patch ports used in gateway routers. They are called l3gateway ports rather than patch ports because these ports are bound to a chassis similar to the gateway router itself.
localnet ports
localnet ports are present on the bridged logical switches that allows a connection to a locally accessible network from each ovn-controller instance. This helps model the direct connectivity to the physical network from the logical switches. A logical switch can only have a single localnet port attached to it.
note

Executing ovnkube-trace with the log level configuration set to 2 or 5 exposes these internal OVN-Kubernetes logical routing components for analysis.

Installing network-tools on local host​

Install network-tools on your local host for debugging OpenShift Container Platform cluster network issues.

Procedure

  1. Clone the network-tools repository onto your workstation with the following command:
    $ git clone git@github.com:openshift/network-tools.git
  2. Change into the directory for the repository you just cloned:
    $ cd network-tools
  3. Optional: List all available commands:
    $ ./debug-scripts/network-tools -h

Running network-tools​

Run network-tools to retrieve configuration status from logical switches and routers when diagnosing internal routing loops and cluster network issues.

Prerequisites

  • You installed the OpenShift CLI (oc).
  • You are logged in to the cluster as a user with cluster-admin privileges.
  • You have installed network-tools on local host.

Procedure

  1. Display the logical router map by entering the following command:

    $ ./debug-scripts/network-tools ovn-db-run-command ovn-nbctl lr-list
    Example output
    944a7b53-7948-4ad2-a494-82b55eeccf87 (GR_ci-ln-54932yb-72292-kd676-worker-c-rzj99)
    84bd4a4c-4b0b-4a47-b0cf-a2c32709fc53 (ovn_cluster_router)

  2. Locate active port bindings with local network attributes by entering the following command:

    $ ./debug-scripts/network-tools ovn-db-run-command "ovn-sbctl find Port_Binding type=localnet"
    Example output
    _uuid               : d05298f5-805b-4838-9224-1211afc2f199
    additional_chassis  : []
    additional_encap    : []
    chassis             : []
    datapath            : f3c2c959-743b-4037-854d-26627902597c
    encap               : []
    external_ids        : {}
    gateway_chassis     : []
    ha_chassis_group    : []
    logical_port        : br-ex_ci-ln-54932yb-72292-kd676-worker-c-rzj99
    mac                 : [unknown]
    mirror_rules        : []
    nat_addresses       : []
    options             : {network_name=physnet}
    parent_port         : []
    port_security       : []
    requested_additional_chassis: []
    requested_chassis   : []
    tag                 : []
    tunnel_key          : 2
    type                : localnet
    up                  : false
    virtual_parent      : []

    [...]

  3. List the l3gateway ports by entering the following command:

    $ ./debug-scripts/network-tools ovn-db-run-command "ovn-sbctl find Port_Binding type=l3gateway"
    Example output
    _uuid               : 5207a1f3-1cf3-42f1-83e9-387bbb06b03c
    additional_chassis  : []
    additional_encap    : []
    chassis             : ca6eb600-3a10-4372-a83e-e0d957c4cd92
    datapath            : f3c2c959-743b-4037-854d-26627902597c
    encap               : []
    external_ids        : {}
    gateway_chassis     : []
    ha_chassis_group    : []
    logical_port        : etor-GR_ci-ln-54932yb-72292-kd676-worker-c-rzj99
    mac                 : ["42:01:0a:00:80:04"]
    mirror_rules        : []
    nat_addresses       : ["42:01:0a:00:80:04 10.0.128.4"]
    options             : {l3gateway-chassis="84737c36-b383-4c83-92c5-2bd5b3c7e772", peer=rtoe-GR_ci-ln-54932yb-72292-kd676-worker-c-rzj99}
    parent_port         : []
    port_security       : []
    requested_additional_chassis: []
    requested_chassis   : []
    tag                 : []
    tunnel_key          : 1
    type                : l3gateway
    up                  : true
    virtual_parent      : []

    _uuid               : 6088d647-84f2-43f2-b53f-c9d379042679
    additional_chassis  : []
    additional_encap    : []
    chassis             : ca6eb600-3a10-4372-a83e-e0d957c4cd92
    datapath            : dc9cea00-d94a-41b8-bdb0-89d42d13aa2e
    encap               : []
    external_ids        : {}
    gateway_chassis     : []
    ha_chassis_group    : []
    logical_port        : jtor-GR_ci-ln-54932yb-72292-kd676-worker-c-rzj99
    mac                 : [router]
    mirror_rules        : []
    nat_addresses       : []
    options             : {l3gateway-chassis="84737c36-b383-4c83-92c5-2bd5b3c7e772", peer=rtoj-GR_ci-ln-54932yb-72292-kd676-worker-c-rzj99}
    parent_port         : []
    port_security       : []
    requested_additional_chassis: []
    requested_chassis   : []
    tag                 : []
    tunnel_key          : 2
    type                : l3gateway
    up                  : true
    virtual_parent      : []

    [...]

  4. List the patch ports by entering the following command:

    $ ./debug-scripts/network-tools ovn-db-run-command "ovn-sbctl find Port_Binding type=patch"
    Example output
    _uuid               : 785fb8b6-ee5a-4792-a415-5b1cb855dac2
    additional_chassis  : []
    additional_encap    : []
    chassis             : []
    datapath            : f1ddd1cc-dc0d-43b4-90ca-12651305acec
    encap               : []
    external_ids        : {}
    gateway_chassis     : []
    ha_chassis_group    : []
    logical_port        : stor-ci-ln-54932yb-72292-kd676-worker-c-rzj99
    mac                 : [router]
    mirror_rules        : []
    nat_addresses       : ["0a:58:0a:80:02:01 10.128.2.1 is_chassis_resident(\"cr-rtos-ci-ln-54932yb-72292-kd676-worker-c-rzj99\")"]
    options             : {peer=rtos-ci-ln-54932yb-72292-kd676-worker-c-rzj99}
    parent_port         : []
    port_security       : []
    requested_additional_chassis: []
    requested_chassis   : []
    tag                 : []
    tunnel_key          : 1
    type                : patch
    up                  : false
    virtual_parent      : []

    _uuid               : c01ff587-21a5-40b4-8244-4cd0425e5d9a
    additional_chassis  : []
    additional_encap    : []
    chassis             : []
    datapath            : f6795586-bf92-4f84-9222-efe4ac6a7734
    encap               : []
    external_ids        : {}
    gateway_chassis     : []
    ha_chassis_group    : []
    logical_port        : rtoj-ovn_cluster_router
    mac                 : ["0a:58:64:40:00:01 100.64.0.1/16"]
    mirror_rules        : []
    nat_addresses       : []
    options             : {peer=jtor-ovn_cluster_router}
    parent_port         : []
    port_security       : []
    requested_additional_chassis: []
    requested_chassis   : []
    tag                 : []
    tunnel_key          : 1
    type                : patch
    up                  : false
    virtual_parent      : []
    [...]

Additional resources
