Automatically scaling pods with the horizontal pod autoscaler

As a developer, you can use a horizontal pod autoscaler (HPA) to specify how OpenShift Container Platform should automatically increase or decrease the scale of a replication controller or deployment configuration, based on metrics collected from the pods that belong to that replication controller or deployment configuration.

You can create an HPA for any deployment, deployment config, replica set, replication controller, or stateful set.

For information on scaling pods based on custom metrics, see "Automatically scaling pods based on custom metrics".

note

It is recommended to use a Deployment object or ReplicaSet object unless you need a specific feature or behavior provided by other objects. For more information on these objects, see "Understanding deployments".

Understanding horizontal pod autoscalers​

You can create a horizontal pod autoscaler to specify the minimum and maximum number of pods you want to run and the CPU usage or memory usage your pods should target.

After you create a horizontal pod autoscaler, OpenShift Container Platform begins to query the CPU, memory, or both resource metrics on the pods. When these metrics are available, the horizontal pod autoscaler computes the ratio of the current metric use with the intended metric use, and scales up or down as needed. The query and scaling occurs at a regular interval, but can take one to two minutes before metrics become available.

For replication controllers, this scaling corresponds directly to the replicas of the replication controller. For deployment, scaling corresponds directly to the replica count of the deployment. Note that autoscaling applies only to the latest deployment in the Complete phase.

OpenShift Container Platform automatically accounts for resources and prevents unnecessary autoscaling during resource spikes, such as during start up. Pods in the unready state have 0 CPU usage when scaling up and the autoscaler ignores the pods when scaling down. Pods without known metrics have 0% CPU usage when scaling up and 100% CPU when scaling down. This allows for more stability during the HPA decision. To use this feature, you must configure readiness checks to determine if a new pod is ready for use.

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics.

The following metrics are supported by horizontal pod autoscalers:

Supported metrics

Metric Description API version
CPU utilization Number of CPU cores used. You can use this to calculate a percentage of the pod's requested CPU. autoscaling/v1, autoscaling/v2
Memory utilization Amount of memory used. You can use this to calculate a percentage of the pod's requested memory. autoscaling/v2
warning

For memory-based autoscaling, memory usage must increase and decrease proportionally to the replica count. On average:

  • An increase in replica count must lead to an overall decrease in memory (working set) usage per-pod.
  • A decrease in replica count must lead to an overall increase in per-pod memory usage.

Use the OpenShift Container Platform web console to check the memory behavior of your application and ensure that your application meets these requirements before using memory-based autoscaling.

The following example shows autoscaling for the hello-node Deployment object. The initial deployment requires 3 pods. The HPA object increases the minimum to 5. If CPU usage on the pods reaches 75%, the pods increase to 7:

$ oc autoscale deployment/hello-node --min=5 --max=7 --cpu-percent=75
Example output
horizontalpodautoscaler.autoscaling/hello-node autoscaled
Sample YAML to create an HPA for the hello-node deployment object with minReplicas set to 3
apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  name: hello-node
  namespace: default
spec:
  maxReplicas: 7
  minReplicas: 3
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: hello-node
  targetCPUUtilizationPercentage: 75
status:
  currentReplicas: 5
  desiredReplicas: 0

After you create the HPA, you can view the new state of the deployment by running the following command:

$ oc get deployment hello-node

There are now 5 pods in the deployment:

Example output
NAME         REVISION   DESIRED   CURRENT   TRIGGERED BY
hello-node   1          5         5         config

How does the HPA work?​

By using the horizontal pod autoscaler (HPA) you can create and manage a group of load-balanced nodes. The HPA automatically increases or decreases the number of pods when a given CPU or memory threshold is crossed.

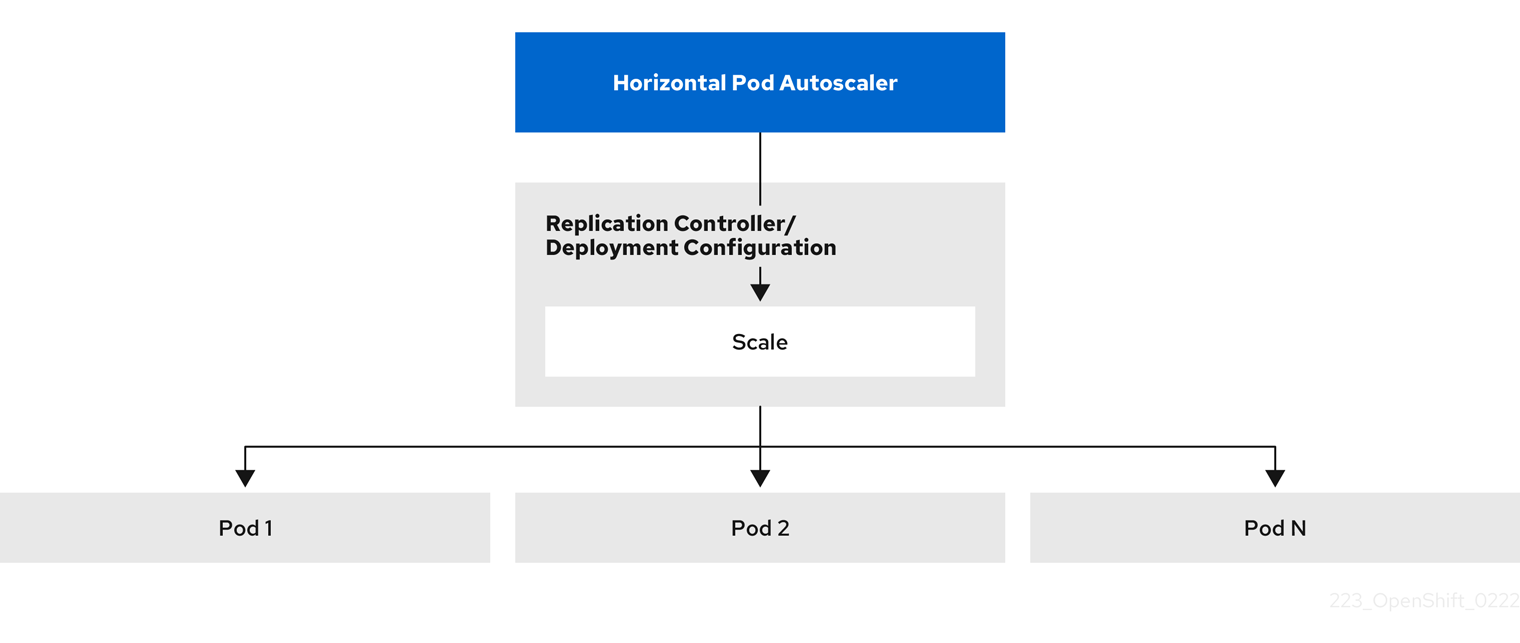

Figure 1. High level workflow of the HPA

workflow

The HPA is an API resource in the Kubernetes autoscaling API group. The autoscaler works as a control loop with a default of 15 seconds for the sync period. During this period, the controller manager queries the CPU, memory utilization, or both, against what is defined in the YAML file for the HPA. The controller manager obtains the utilization metrics from the resource metrics API for per-pod resource metrics like CPU or memory, for each pod that is targeted by the HPA.

If a utilization value target is set, the controller calculates the utilization value as a percentage of the equivalent resource request on the containers in each pod. The controller then takes the average of utilization across all targeted pods and produces a ratio that is used to scale the number of desired replicas. The HPA is configured to fetch metrics from metrics.k8s.io, which is provided by the metrics server. Because of the dynamic nature of metrics evaluation, the number of replicas can fluctuate during scaling for a group of replicas.

note

To implement the HPA, all targeted pods must have a resource request set on their containers.

About requests and limits​

To use resource metrics, you must specify the resource requests, such as CPU and memory, in a pod specification. The HPA uses this specification to determine the resource utilization and then scales the target up or down.

The scheduler uses the resource request that you specify for containers in a pod, to decide which node to place the pod on. The kubelet enforces the resource limit that you specify for a container to ensure that the container is not allowed to use more than the specified limit. The kubelet also reserves the request amount of that system resource specifically for that container to use.

For example, the HPA object uses the following metric source:

type: Resource
resource:
  name: cpu
  target:
    type: Utilization
    averageUtilization: 60

In this example, the HPA keeps the average utilization of the pods in the scaling target at 60%. Utilization is the ratio between the current resource usage to the requested resource of the pod.

Best practices​

You can help ensure optimal performance in your cluster by configuring resource requests for all pods. Additionally, you can prevent frequent replica fluctuations by configuring the cooldown period.

All pods must have resource requests configured
The HPA makes a scaling decision based on the observed CPU or memory usage values of pods in an OpenShift Container Platform cluster. Utilization values are calculated as a percentage of the resource requests of each pod. Missing resource request values can affect the optimal performance of the HPA.

For more information, see "Understanding resource requests and limits".

Configure the cool down period
During horizontal pod autoscaling, there might be a rapid scaling of events without a time gap. Configure the cool down period to prevent frequent replica fluctuations. You can specify a cool down period by configuring the stabilizationWindowSeconds field. The stabilization window is used to restrict the fluctuation of replicas count when the metrics used for scaling keep fluctuating. The autoscaling algorithm uses this window to infer a previous required state and avoid unwanted changes to workload scale.

For example, a stabilization window is specified for the scaleDown field:

behavior:
  scaleDown:
    stabilizationWindowSeconds: 300

In the previous example, all intended states for the past 5 minutes are considered. This approximates a rolling maximum, and avoids having the scaling algorithm often remove pods only to trigger recreating an equal pod just moments later.

For more information, see "Scaling policies".

Scaling policies​

To control how the OpenShift Container Platform horizontal pod autoscaler (HPA) scales pods you can define a scaling policy to restrict the rate at which scaling occurs and a stabilization window to restrict the fluctuation of replicas count when the metrics used for scaling keep fluctuating.

A scaling policy restricts the rate that HPAs scale pods up or down by setting a specific number or specific percentage to scale in a specified period of time. A stabilization window, which uses previously computed required states to control scaling if the metrics are fluctuating. You can create multiple policies for the same scaling direction, and determine the policy to use, based on the amount of change. You can also restrict the scaling by timed iterations. The HPA scales pods during an iteration, then performs scaling, as needed, in further iterations.

Use the autoscaling/v2 API to add scaling policies to a horizontal pod autoscaler.

Sample HPA object with a scaling policy
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: hpa-resource-metrics-memory
  namespace: default
spec:
  behavior:
    scaleDown:
      policies:
      - type: Pods
        value: 4
        periodSeconds: 60
      - type: Percent
        value: 10
        periodSeconds: 60
      selectPolicy: Min
      stabilizationWindowSeconds: 300
    scaleUp:
      policies:
      - type: Pods
        value: 5
        periodSeconds: 70
      - type: Percent
        value: 12
        periodSeconds: 80
      selectPolicy: Max
      stabilizationWindowSeconds: 0
...

where:

spec.behavior.scaleDown
Specifies a policy for scaling down.
spec.behavior.scaleDown.policies
Specifies the parameters for the scaling policy. Set the following values:
  • type. Specifies whether the policy scales by a specific number of pods or a percentage of pods during each iteration. The default value is pods.
  • value. Specifies the amount of scaling, either the number of pods or percentage of pods, during each iteration. The default value for scaling down by percentage is 100%. There is no default value for scaling down by number of pods.
  • periodSeconds. Specifies the length of a scaling iteration. The default value is 15 seconds.
spec.behavior.scaleDown.selectPolicy
Specifies the policy to use first, if multiple policies are defined. Specify Max to use the policy that allows the highest amount of change, Min to use the policy that allows the lowest amount of change, or Disabled to prevent the HPA from scaling in that policy direction. The default value is Max.
spec.behavior.scaleDown.stabilizationWindowSeconds
Specifies the time period the HPA reviews the required states. The default value is 0.
spec.behavior.scaleUp
Specifies a policy for scaling up.
spec.behavior.scaleUp.policies
Specifies the parameters for the scaling policy. Set the following values:
  • type. Specifies whether the policy scales by a specific number of pods or a percentage of pods during each iteration.
  • value. Specifies the amount of scaling, either the number of pods or percentage of pods, during each iteration. The default value for scaling up by percentage is 100%. The default value for scaling up the number of pods is 4%.
  • periodSeconds. Specifies the length of a scaling iteration.
Example policy for scaling down
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: hpa-resource-metrics-memory
  namespace: default
spec:
...
  minReplicas: 20
...
  behavior:
    scaleDown:
      stabilizationWindowSeconds: 300
      policies:
      - type: Pods
        value: 4
        periodSeconds: 30
      - type: Percent
        value: 10
        periodSeconds: 60
      selectPolicy: Max
    scaleUp:
      selectPolicy: Disabled

In this example, when the number of pods is greater than 40, the percent-based policy is used for scaling down, as that policy results in a larger change, as required by the selectPolicy.

If there are 80 pod replicas, in the first iteration the HPA reduces the pods by 8, which is 10% of the 80 pods (based on the type: Percent and value: 10 parameters), over one minute (periodSeconds: 60). For the next iteration, the number of pods is 72. The HPA calculates that 10% of the remaining pods is 7.2, which it rounds up to 8 and scales down 8 pods. On each subsequent iteration, the number of pods to be scaled is re-calculated based on the number of remaining pods. When the number of pods falls to less than 40, the pods-based policy is applied, because the pod-based number is greater than the percent-based number. The HPA reduces 4 pods at a time (type: Pods and value: 4), over 30 seconds (periodSeconds: 30), until there are 20 replicas remaining (minReplicas).

The selectPolicy: Disabled parameter prevents the HPA from scaling up the pods. You can manually scale up by adjusting the number of replicas in the replica set or deployment set, if needed.

If set, you can view the scaling policy by using the oc edit command:

$ oc edit hpa hpa-resource-metrics-memory
Example output
apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  annotations:
    autoscaling.alpha.kubernetes.io/behavior:\
'{"ScaleUp":{"StabilizationWindowSeconds":0,"SelectPolicy":"Max","Policies":[{"Type":"Pods","Value":4,"PeriodSeconds":15},{"Type":"Percent","Value":100,"PeriodSeconds":15}]},\
"ScaleDown":{"StabilizationWindowSeconds":300,"SelectPolicy":"Min","Policies":[{"Type":"Pods","Value":4,"PeriodSeconds":60},{"Type":"Percent","Value":10,"PeriodSeconds":60}]}}'
...

Create a horizontal pod autoscaler by using the web console​

You can use the web console to create a horizontal pod autoscaler (HPA) that specifies the minimum and maximum number of pods you want to run on a Deployment or DeploymentConfig object. You can also define the amount of CPU or memory usage that your pods should target.

note

An HPA cannot be added to deployments that are part of an Operator-backed service, Knative service, or Helm chart.

The following procedure creates an HPA in the web console.

Procedure

  1. In the Topology view, click the node to reveal the side pane.

  2. From the Actions drop-down list, select Add HorizontalPodAutoscaler to open the Add HorizontalPodAutoscaler form. Figure 2. Add HorizontalPodAutoscaler

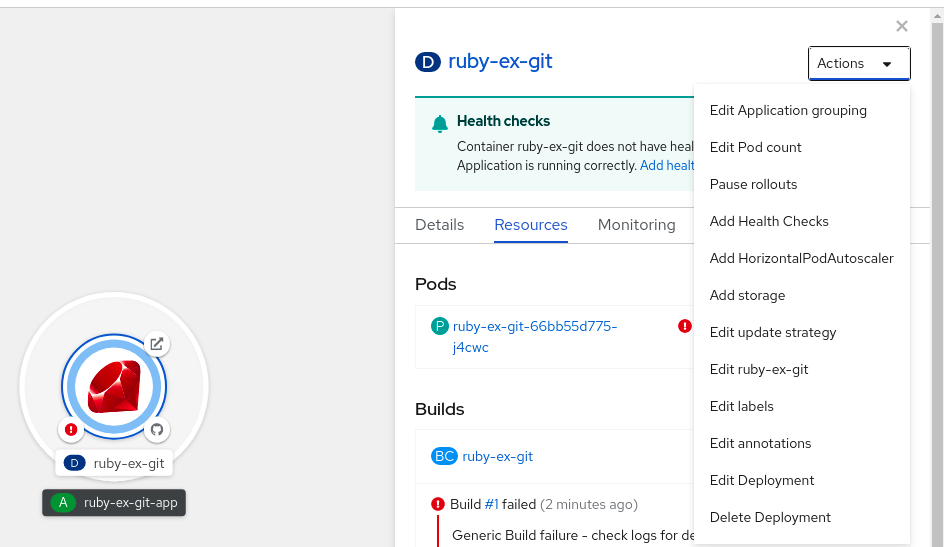

    Add HorizontalPodAutoscaler form

  3. From the Add HorizontalPodAutoscaler form, define the name, minimum and maximum pod limits, the CPU and memory usage, and click Save.

    note

    If any of the values for CPU and memory usage are missing, a warning is displayed.

Edit a horizontal pod autoscaler by using the web console​

You can use the web console to modify a horizontal pod autoscaler (HPA) that specifies the minimum and maximum number of pods you want to run on a Deployment or DeploymentConfig object. You can also define the amount of CPU or memory usage that your pods should target.

Procedure

  1. In the Topology view, click the node to reveal the side pane.

  2. From the Actions drop-down list, select Edit HorizontalPodAutoscaler to open the Edit Horizontal Pod Autoscaler form.

  3. From the Edit Horizontal Pod Autoscaler form, edit the minimum and maximum pod limits and the CPU and memory usage, and click Save.

    note

    While creating or editing the horizontal pod autoscaler in the web console, you can switch from Form view to YAML view.

Remove a horizontal pod autoscaler by using the web console​

You can use the web console to remove a horizontal pod autoscaler (HPA).

Procedure

  1. In the Topology view, click the node to reveal the side panel.
  2. From the Actions drop-down list, select Remove HorizontalPodAutoscaler.
  3. In the confirmation window, click Remove to remove the HPA.

Creating a horizontal pod autoscaler by using the CLI​

By using the OpenShift Container Platform CLI, you can create a horizontal pod autoscaler (HPA) to automatically scale an existing Deployment, DeploymentConfig, ReplicaSet, ReplicationController, or StatefulSet object. The HPA scales the pods associated with that object to maintain the CPU or memory resources that you specify.

You can autoscale based on CPU or memory use by specifying a percentage of resource usage or a specific value, as described in the following sections.

The HPA increases and decreases the number of replicas between the minimum and maximum numbers to maintain the specified resource use across all pods.

Create a horizontal pod autoscaler for a percent of CPU use​

You can use the OpenShift Container Platform CLI to create a horizontal pod autoscaler (HPA) that automatically scales an existing object based on percent of CPU use. The HPA scales the pods associated with that object to maintain the CPU use that you specify.

When autoscaling for a percent of CPU use, you can use the oc autoscale command to specify the minimum and maximum number of pods that you want to run at any given time and the average CPU use your pods should target. If you do not specify a minimum, the pods are given default values from the OpenShift Container Platform server.

note

Use a Deployment object or ReplicaSet object unless you need a specific feature or behavior provided by other objects.

Prerequisites

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics. You can use the oc describe PodMetrics <pod-name> command to determine if metrics are configured. If metrics are configured, the output appears similar to the following, with Cpu and Memory displayed under Usage.

$ oc describe PodMetrics openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Example output
Name:         openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Namespace:    openshift-kube-scheduler
Labels:       <none>
Annotations:  <none>
API Version:  metrics.k8s.io/v1beta1
Containers:
  Name:  wait-for-host-port
  Usage:
    Memory:  0
  Name:      scheduler
  Usage:
    Cpu:     8m
    Memory:  45440Ki
Kind:        PodMetrics
Metadata:
  Creation Timestamp:  2019-05-23T18:47:56Z
  Self Link:           /apis/metrics.k8s.io/v1beta1/namespaces/openshift-kube-scheduler/pods/openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Timestamp:             2019-05-23T18:47:56Z
Window:                1m0s
Events:                <none>

Procedure

  1. Create a HorizontalPodAutoscaler object for an existing object:

    $ oc autoscale <object_type>/<name> \
      --min <number> \
      --max <number> \
      --cpu-percent=<percent>

    where:

    <object_type>/<name>
    Specifies the type and name of the object to autoscale. The object must exist and be a Deployment, DeploymentConfig/dc, ReplicaSet/rs, ReplicationController/rc, or StatefulSet.
    min
    Specifies the minimum number of replicas when scaling down. Replace <number> with the minimum number of replicas. This parameter is optional.
    max
    Specifies the maximum number of replicas when scaling up. Replace <number> with the maximum number of replicas.
    cpu-percent
    Specifies the target average CPU use over all the pods, represented as a percent of requested CPU. Replace <percent> with requested percentage. If not specified or negative, a default autoscaling policy is used.

    For example, the following command shows autoscaling for the hello-node deployment object. The initial deployment requires 3 pods. The HPA object increases the minimum to 5. If CPU usage on the pods reaches 75%, the pods will increase to 7:

    $ oc autoscale deployment/hello-node --min=5 --max=7 --cpu-percent=75

  2. Create the horizontal pod autoscaler:

    $ oc create -f <file-name>.yaml

Verification

  • Ensure that the horizontal pod autoscaler was created:

    $ oc get hpa cpu-autoscale
    Example output
    NAME            REFERENCE            TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
    cpu-autoscale   Deployment/example   173m/500m       1         10        1          20m

Create a horizontal pod autoscaler for a specific CPU value​

You can use the OpenShift Container Platform CLI to create a horizontal pod autoscaler (HPA) that automatically scales an existing object based on a specific CPU value by creating a HorizontalPodAutoscaler object with the target CPU and pod limits. The HPA scales the pods associated with that object to maintain the CPU use that you specify.

note

Use a Deployment object or ReplicaSet object unless you need a specific feature or behavior provided by other objects.

Prerequisites

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics. You can use the oc describe PodMetrics <pod-name> command to determine if metrics are configured. If metrics are configured, the output appears similar to the following, with Cpu and Memory displayed under Usage.

$ oc describe PodMetrics openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Example output
Name:         openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Namespace:    openshift-kube-scheduler
Labels:       <none>
Annotations:  <none>
API Version:  metrics.k8s.io/v1beta1
Containers:
  Name:  wait-for-host-port
  Usage:
    Memory:  0
  Name:      scheduler
  Usage:
    Cpu:     8m
    Memory:  45440Ki
Kind:        PodMetrics
Metadata:
  Creation Timestamp:  2019-05-23T18:47:56Z
  Self Link:           /apis/metrics.k8s.io/v1beta1/namespaces/openshift-kube-scheduler/pods/openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Timestamp:             2019-05-23T18:47:56Z
Window:                1m0s
Events:                <none>

Procedure

  1. Create a YAML file similar to the following for an existing object:

    apiVersion: autoscaling/v2
    kind: HorizontalPodAutoscaler
    metadata:
      name: cpu-autoscale
      namespace: default
    spec:
      scaleTargetRef:
        apiVersion: apps/v1
        kind: Deployment
        name: example
      minReplicas: 1
      maxReplicas: 10
      metrics:
      - type: Resource
        resource:
          name: cpu
          target:
            type: AverageValue
            averageValue: 500m

    where:

    apiVersion

    Specifies the autoscaling/v2 API.

    metadata.name

    Specifies a name for this horizontal pod autoscaler object.

    spec.scaleTargetRef.apiVersion

    Specifies the API version of the object to scale:

    • For a Deployment, ReplicaSet, Statefulset object, use apps/v1.
    • For a ReplicationController, use v1.
    • For a DeploymentConfig, use apps.openshift.io/v1.

    spec.scaleTargetRef.kind

    Specifies the type of object. The object must be a Deployment, DeploymentConfig/dc, ReplicaSet/rs, ReplicationController/rc, or StatefulSet.

    spec.scaleTargetRef.name

    Specifies the name of the object to scale. The object must exist.

    spec.minReplicas

    Specifies the minimum number of replicas when scaling down.

    spec.maxReplicas

    Specifies the maximum number of replicas when scaling up.

    spec.metrics

    Specifies the parameters to calculate the desired replica count.

    spec.metrics.resource.name

    Specifies a name for the resource.

    spec.metrics.resource.target.type

    Specifies the type of target, here AverageValue for a specific CPU value.

    spec.metrics.resource.target.averageValue

    Specifies the targeted CPU value.

  2. Create the horizontal pod autoscaler:

    $ oc create -f <file-name>.yaml

Verification

  • Check that the horizontal pod autoscaler was created:

    $ oc get hpa cpu-autoscale
    Example output
    NAME            REFERENCE            TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
    cpu-autoscale   Deployment/example   173m/500m       1         10        1          20m

Create a horizontal pod autoscaler object for a percent of memory use​

You can use the OpenShift Container Platform CLI to create a horizontal pod autoscaler (HPA) that automatically scales an existing object based on a percent of memory use. The HPA scales the pods associated with that object to maintain the memory use that you specify.

note

Use a Deployment object or ReplicaSet object unless you need a specific feature or behavior provided by other objects.

You can specify the minimum and maximum number of pods and the average memory use that your pods should target. If you do not specify a minimum, the pods are given default values from the OpenShift Container Platform server.

Prerequisites

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics. You can use the oc describe PodMetrics <pod-name> command to determine if metrics are configured. If metrics are configured, the output appears similar to the following, with Cpu and Memory displayed under Usage.

$ oc describe PodMetrics openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Example output
Name:         openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Namespace:    openshift-kube-scheduler
Labels:       <none>
Annotations:  <none>
API Version:  metrics.k8s.io/v1beta1
Containers:
  Name:  wait-for-host-port
  Usage:
    Memory:  0
  Name:      scheduler
  Usage:
    Cpu:     8m
    Memory:  45440Ki
Kind:        PodMetrics
Metadata:
  Creation Timestamp:  2019-05-23T18:47:56Z
  Self Link:           /apis/metrics.k8s.io/v1beta1/namespaces/openshift-kube-scheduler/pods/openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Timestamp:             2019-05-23T18:47:56Z
Window:                1m0s
Events:                <none>

Procedure

  1. Create a HorizontalPodAutoscaler object similar to the following for an existing object:

    apiVersion: autoscaling/v2
    kind: HorizontalPodAutoscaler
    metadata:
      name: memory-autoscale
      namespace: default
    spec:
      scaleTargetRef:
        apiVersion: apps/v1
        kind: Deployment
        name: example
      minReplicas: 1
      maxReplicas: 10
      metrics:
      - type: Resource
        resource:
          name: memory
          target:
            type: Utilization
            averageUtilization: 50
      behavior:
        scaleUp:
          stabilizationWindowSeconds: 180
          policies:
          - type: Pods
            value: 6
            periodSeconds: 120
          - type: Percent
            value: 10
            periodSeconds: 120
          selectPolicy: Max

    where:

    apiVersion

    Specifies the autoscaling/v2 API.

    metadata.name

    Specifies a name for this horizontal pod autoscaler object.

    spec.scaleTargetRef.apiVersion

    Specifies the API version of the object to scale:

    • For a Deployment, ReplicaSet, Statefulset object, use apps/v1.
    • For a ReplicationController, use v1.
    • For a DeploymentConfig, use apps.openshift.io/v1.

    spec.scaleTargetRef.kind

    Specifies the type of object. The object must be a Deployment, DeploymentConfig/dc, ReplicaSet/rs, ReplicationController/rc, or StatefulSet.

    spec.scaleTargetRef.name

    Specifies the name of the object to scale. The object must exist.

    spec.minReplicas

    Specifies the minimum number of replicas when scaling down.

    spec.maxReplicas

    Specifies the maximum number of replicas when scaling up.

    spec.metrics

    Specifies the parameters to calculate the desired replica count.

    spec.metrics.resource.name

    Specifies a name for the resource.

    spec.metrics.resource.target.type

    Specifies the type of target, here Utilization for a percentage value.

    spec.metrics.resource.target.averageUtilization

    Specifies the targeted average memory usage over all the pods, represented as a percent of requested memory. The target pods must have memory requests configured.

    spec.behavior

    Optional: Specifies a scaling policy to control the rate of scaling up or down.

  2. Create the horizontal pod autoscaler by using a command similar to the following:

    $ oc create -f <file-name>.yaml

    For example:

    $ oc create -f hpa.yaml
    Example output
    horizontalpodautoscaler.autoscaling/hpa-resource-metrics-memory created

Verification

  • Check that the horizontal pod autoscaler was created by using a command similar to the following:

    $ oc get hpa hpa-resource-metrics-memory
    Example output
    NAME                          REFERENCE            TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
    hpa-resource-metrics-memory   Deployment/example   2441216/500Mi   1         10        1          20m

  • Check the details of the horizontal pod autoscaler by using a command similar to the following:

    $ oc describe hpa hpa-resource-metrics-memory
    Example output
    Name:                        hpa-resource-metrics-memory
    Namespace:                   default
    Labels:                      <none>
    Annotations:                 <none>
    CreationTimestamp:           Wed, 04 Mar 2020 16:31:37 +0530
    Reference:                   Deployment/example
    Metrics:                     ( current / target )
      resource memory on pods:   2441216 / 500Mi
    Min replicas:                1
    Max replicas:                10
    ReplicationController pods:  1 current / 1 desired
    Conditions:
      Type            Status  Reason              Message
      ----            ------  ------              -------
      AbleToScale     True    ReadyForNewScale    recommended size matches current size
      ScalingActive   True    ValidMetricFound    the HPA was able to successfully calculate a replica count from memory resource
      ScalingLimited  False   DesiredWithinRange  the desired count is within the acceptable range
    Events:
      Type     Reason                   Age                 From                       Message
      ----     ------                   ----                ----                       -------
      Normal   SuccessfulRescale        6m34s               horizontal-pod-autoscaler  New size: 1; reason: All metrics below target

Create a horizontal pod autoscaler object for specific memory use​

You can use the OpenShift Container Platform CLI to create a horizontal pod autoscaler (HPA) that automatically scales an existing object. The HPA scales the pods associated with that object to maintain the average memory use that you specify.

note

Use a Deployment object or ReplicaSet object unless you need a specific feature or behavior provided by other objects.

You can specify the minimum and maximum number of pods and the average memory use that your pods should target. If you do not specify a minimum, the pods are given default values from the OpenShift Container Platform server.

Prerequisites

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics. You can use the oc describe PodMetrics <pod-name> command to determine if metrics are configured. If metrics are configured, the output appears similar to the following, with Cpu and Memory displayed under Usage.

$ oc describe PodMetrics openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Example output
Name:         openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Namespace:    openshift-kube-scheduler
Labels:       <none>
Annotations:  <none>
API Version:  metrics.k8s.io/v1beta1
Containers:
  Name:  wait-for-host-port
  Usage:
    Memory:  0
  Name:      scheduler
  Usage:
    Cpu:     8m
    Memory:  45440Ki
Kind:        PodMetrics
Metadata:
  Creation Timestamp:  2019-05-23T18:47:56Z
  Self Link:           /apis/metrics.k8s.io/v1beta1/namespaces/openshift-kube-scheduler/pods/openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Timestamp:             2019-05-23T18:47:56Z
Window:                1m0s
Events:                <none>

Procedure

  1. Create a HorizontalPodAutoscaler object similar to the following for an existing object:

    apiVersion: autoscaling/v2
    kind: HorizontalPodAutoscaler
    metadata:
      name: hpa-resource-metrics-memory
      namespace: default
    spec:
      scaleTargetRef:
        apiVersion: apps/v1
        kind: Deployment
        name: example
      minReplicas: 1
      maxReplicas: 10
      metrics:
      - type: Resource
        resource:
          name: memory
          target:
            type: AverageValue
            averageValue: 500Mi
      behavior:
        scaleDown:
          stabilizationWindowSeconds: 300
          policies:
          - type: Pods
            value: 4
            periodSeconds: 60
          - type: Percent
            value: 10
            periodSeconds: 60
          selectPolicy: Max

    where:

    apiVersion

    Specifies the autoscaling/v2 API.

    metadata.name

    Specifies a name for this horizontal pod autoscaler object.

    spec.scaleTargetRef.apiVersion

    Specifies the API version of the object to scale:

    • For a Deployment, ReplicaSet, Statefulset object, use apps/v1.
    • For a ReplicationController, use v1.
    • For a DeploymentConfig, use apps.openshift.io/v1.

    spec.scaleTargetRef.kind

    Specifies the type of object. The object must be a Deployment, DeploymentConfig/dc, ReplicaSet/rs, ReplicationController/rc, or StatefulSet.

    spec.scaleTargetRef.name

    Specifies the name of the object to scale. The object must exist.

    spec.minReplicas

    Specifies the minimum number of replicas when scaling down.

    spec.maxReplicas

    Specifies the maximum number of replicas when scaling up.

    spec.metrics

    Specifies the parameters to calculate the desired replica count. Set the

    spec.metrics.resource.name

    Specifies a name for the resource.

    spec.metrics.resource.target.type

    Specifies the type of target, here AverageValue for a specific memory value.

    spec.metrics.resource.target.averageValue

    Specifies the targeted memory value.

    spec.behavior

    Optional: Specifies a scaling policy to control the rate of scaling up or down.

  2. Create the horizontal pod autoscaler by using a command similar to the following:

    $ oc create -f <file-name>.yaml

    For example:

    $ oc create -f hpa.yaml
    Example output
    horizontalpodautoscaler.autoscaling/hpa-resource-metrics-memory created

Verification

  • Check that the horizontal pod autoscaler was created by using a command similar to the following:

    $ oc get hpa hpa-resource-metrics-memory
    Example output
    NAME                          REFERENCE            TARGETS         MINPODS   MAXPODS   REPLICAS   AGE
    hpa-resource-metrics-memory   Deployment/example   2441216/500Mi   1         10        1          20m

  • Check the details of the horizontal pod autoscaler by using a command similar to the following:

    $ oc describe hpa hpa-resource-metrics-memory
    Example output
    Name:                        hpa-resource-metrics-memory
    Namespace:                   default
    Labels:                      <none>
    Annotations:                 <none>
    CreationTimestamp:           Wed, 04 Mar 2020 16:31:37 +0530
    Reference:                   Deployment/example
    Metrics:                     ( current / target )
      resource memory on pods:   2441216 / 500Mi
    Min replicas:                1
    Max replicas:                10
    ReplicationController pods:  1 current / 1 desired
    Conditions:
      Type            Status  Reason              Message
      ----            ------  ------              -------
      AbleToScale     True    ReadyForNewScale    recommended size matches current size
      ScalingActive   True    ValidMetricFound    the HPA was able to successfully calculate a replica count from memory resource
      ScalingLimited  False   DesiredWithinRange  the desired count is within the acceptable range
    Events:
      Type     Reason                   Age                 From                       Message
      ----     ------                   ----                ----                       -------
      Normal   SuccessfulRescale        6m34s               horizontal-pod-autoscaler  New size: 1; reason: All metrics below target

Understanding horizontal pod autoscaler status conditions by using the CLI​

You can review the horizontal pod autoscaler (HPA) status conditions set to determine if the HPA is able to scale or if it is currently restricted in any way.

The HPA status conditions are available with the v2 version of the autoscaling API.

The HPA responds with the following status conditions:

  • The AbleToScale condition indicates whether HPA is able to fetch and update metrics, as well as whether any backoff-related conditions could prevent scaling.
    • A True condition indicates scaling is allowed.
    • A False condition indicates scaling is not allowed for the reason specified.
  • The ScalingActive condition indicates whether the HPA is enabled (for example, the replica count of the target is not zero) and is able to calculate desired metrics.
    • A True condition indicates metrics is working properly.
    • A False condition generally indicates a problem with fetching metrics.
  • The ScalingLimited condition indicates that the desired scale was capped by the maximum or minimum of the horizontal pod autoscaler.

    • A True condition indicates that you need to raise or lower the minimum or maximum replica count in order to scale.

    • A False condition indicates that the requested scaling is allowed.

      $ oc describe hpa cm-test
      Example output
      Name:                           cm-test
      Namespace:                      prom
      Labels:                         <none>
      Annotations:                    <none>
      CreationTimestamp:              Fri, 16 Jun 2017 18:09:22 +0000
      Reference:                      ReplicationController/cm-test
      Metrics:                        ( current / target )
        "http_requests" on pods:      66m / 500m
      Min replicas:                   1
      Max replicas:                   4
      ReplicationController pods:     1 current / 1 desired
      Conditions: (1)
        Type              Status    Reason              Message
        ----              ------    ------              -------
        AbleToScale       True      ReadyForNewScale    the last scale time was sufficiently old as to warrant a new scale
        ScalingActive     True      ValidMetricFound    the HPA was able to successfully calculate a replica count from pods metric http_request
        ScalingLimited    False     DesiredWithinRange  the desired replica count is within the acceptable range
      Events:

      The horizontal pod autoscaler status messages appear in the Conditions stanza.

The following is an example of a pod that is unable to scale:

Example output
Conditions:
  Type         Status  Reason          Message
  ----         ------  ------          -------
  AbleToScale  False   FailedGetScale  the HPA controller was unable to get the target's current scale: no matches for kind "ReplicationController" in group "apps"
Events:
  Type     Reason          Age               From                       Message
  ----     ------          ----              ----                       -------
  Warning  FailedGetScale  6s (x3 over 36s)  horizontal-pod-autoscaler  no matches for kind "ReplicationController" in group "apps"

The following is an example of a pod that could not obtain the needed metrics for scaling:

Example output
Conditions:
  Type                  Status    Reason                    Message
  ----                  ------    ------                    -------
  AbleToScale           True     SucceededGetScale          the HPA controller was able to get the target's current scale
  ScalingActive         False    FailedGetResourceMetric    the HPA was unable to compute the replica count: failed to get cpu utilization: unable to get metrics for resource cpu: no metrics returned from resource metrics API

The following is an example of a pod where the requested autoscaling was less than the required minimums:

Example output
Conditions:
  Type              Status    Reason              Message
  ----              ------    ------              -------
  AbleToScale       True      ReadyForNewScale    the last scale time was sufficiently old as to warrant a new scale
  ScalingActive     True      ValidMetricFound    the HPA was able to successfully calculate a replica count from pods metric http_request
  ScalingLimited    False     DesiredWithinRange  the desired replica count is within the acceptable range

View horizontal pod autoscaler status conditions by using the CLI​

You can view the status conditions set on a pod by the horizontal pod autoscaler (HPA).

note

The horizontal pod autoscaler status conditions are available with the v2 version of the autoscaling API.

Prerequisites

To use horizontal pod autoscalers, your cluster administrator must have properly configured cluster metrics. You can use the oc describe PodMetrics <pod-name> command to determine if metrics are configured. If metrics are configured, the output appears similar to the following, with Cpu and Memory displayed under Usage.

$ oc describe PodMetrics openshift-kube-scheduler-ip-10-0-135-131.ec2.internal

The output appears similar to the following example:

Name:         openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Namespace:    openshift-kube-scheduler
Labels:       <none>
Annotations:  <none>
API Version:  metrics.k8s.io/v1beta1
Containers:
  Name:  wait-for-host-port
  Usage:
    Memory:  0
  Name:      scheduler
  Usage:
    Cpu:     8m
    Memory:  45440Ki
Kind:        PodMetrics
Metadata:
  Creation Timestamp:  2019-05-23T18:47:56Z
  Self Link:           /apis/metrics.k8s.io/v1beta1/namespaces/openshift-kube-scheduler/pods/openshift-kube-scheduler-ip-10-0-135-131.ec2.internal
Timestamp:             2019-05-23T18:47:56Z
Window:                1m0s
Events:                <none>

Procedure

  • To view the status conditions on a pod, use the following command with the name of the pod:

    $ oc describe hpa <pod-name>

    For example:

    $ oc describe hpa cm-test

    The conditions appear in the Conditions field in the output.

    Name:                           cm-test
    Namespace:                      prom
    Labels:                         <none>
    Annotations:                    <none>
    CreationTimestamp:              Fri, 16 Jun 2017 18:09:22 +0000
    Reference:                      ReplicationController/cm-test
    Metrics:                        ( current / target )
      "http_requests" on pods:      66m / 500m
    Min replicas:                   1
    Max replicas:                   4
    ReplicationController pods:     1 current / 1 desired
    Conditions: (1)
      Type              Status    Reason              Message
      ----              ------    ------              -------
      AbleToScale       True      ReadyForNewScale    the last scale time was sufficiently old as to warrant a new scale
      ScalingActive     True      ValidMetricFound    the HPA was able to successfully calculate a replica count from pods metric http_request
      ScalingLimited    False     DesiredWithinRange  the desired replica count is within the acceptable range

Additional resources
